Synteny Viewer

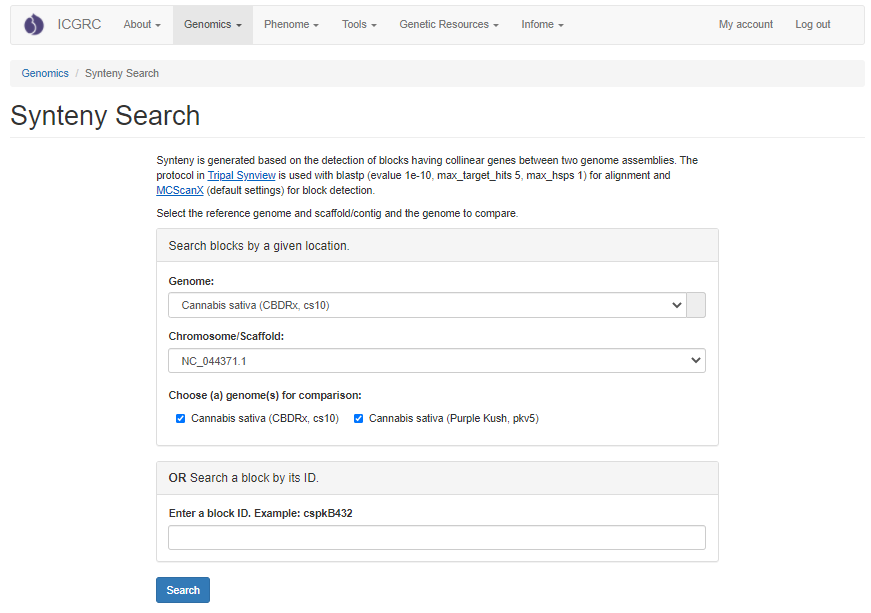

Synteny Viewer, developed by the Fei Bioinformatics Lab, to display the analysis results of genomes that were compared using the program MCScanX.  Synteny Viewer is accessed under the "Genomics" menu.  To get started with Synteny Viewer, first select a genome.  The "Chromosome/Scaffold" menu will then populate with the names of the appropriate scaffolds or chromosomes and one of these sequences can be selected.  The final option is to select one or more genomes for comparison, and then the "Search button" is clicked to start the search.  Alternatively, if the block ID number is already known, the block ID value can be input directly to return just those results.

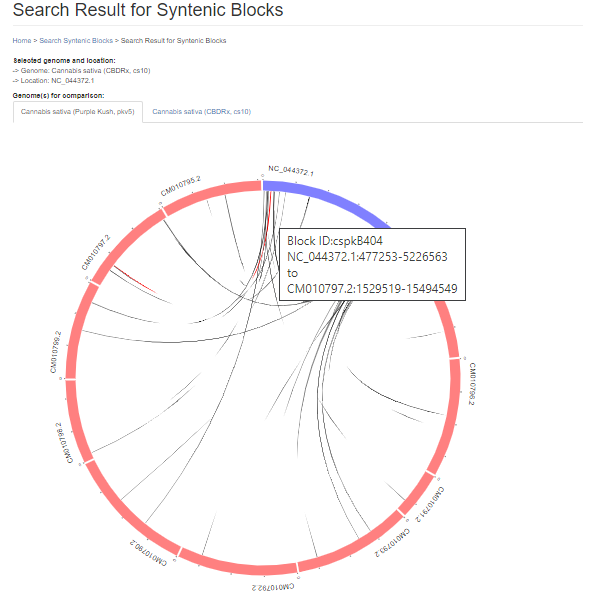

When the search is complete, a new page opens with the results.  There is a summary of the input settings at the top of the page.  When multiple genomes are queried, there are tabs to switch between the results and the circular graph will change when a different genome is selected.  The syntenic regions are indicated on the circular graph by gray lines.  When the mouse hovers over the gray line, a summary is displayed.  Clicking on the gray lines, opens a page with more details.

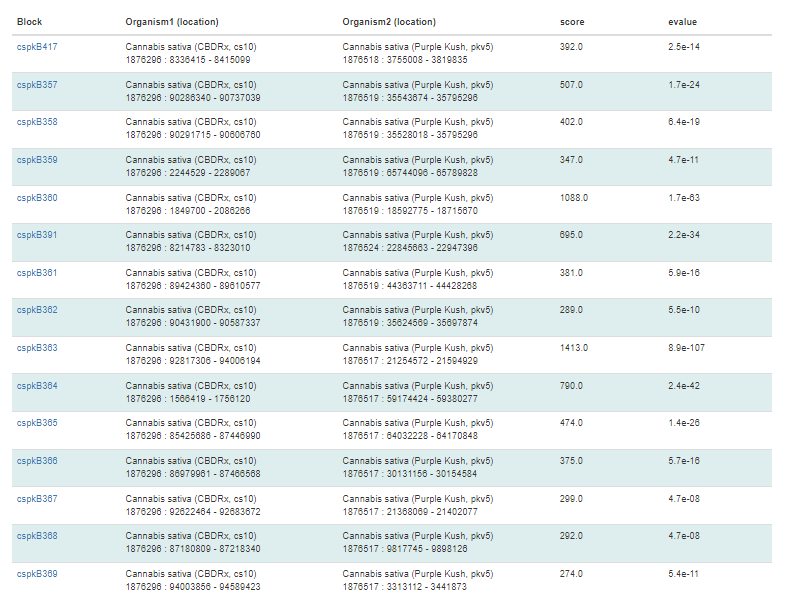

Under the circular graph is a table listing the syntenic blocks that are displayed as gray lines in the circular graph.  Clicking on the block name opens the same details page as clicking on the gray lines on the circular graph.

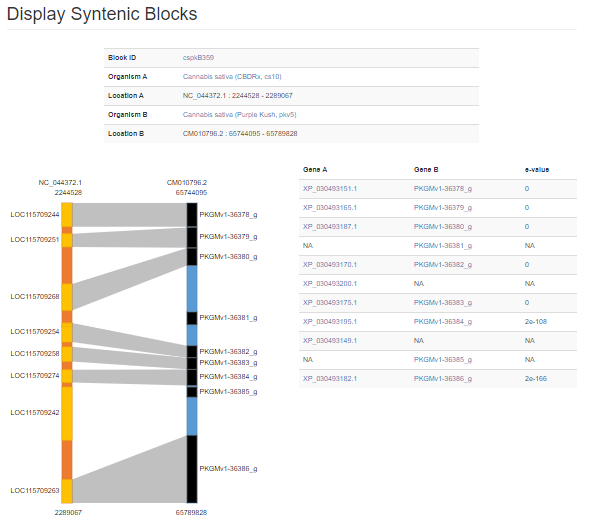

The syntenic block details page has an overview section at the top listing the details for each genome in the comparison, a side-by-side graphic of the syntenic block from each genome, and a table showing the genes in the syntenic block from each genome.  The side-by-side graph can be zoomed-in by using the scroll wheel on the mouse and the view can be shifted up or down by click and dragging.  Clicking on the gene name in either the table or on the graphic will open the feature details page from the GDC database.
